Shoe and boot cleaner flush to the floor
Sales price without discount:
from Price on request GBP plus VAT (depending on option)
- Shoe washing facilities for 4 to 24 persons
- Efficient and comfortable shoe cleaning for outdoor facilities
- High-quality facility ideal for schools, sports fields, police schools, military bases, etc
- Made of formwork-smooth, reinforced concrete
- Concrete element with 2 to 3 removable and hot-dip galvanised gratings
- Wash handle with 4-24 connections for taps
- With support bracket for shoes
- Faucets and hand brushes are available as accessories
- Further product description and technical data
Request a customised quote
Please complete the form and we will send you our offer, including a description, images and technical data, within 1-2 days.

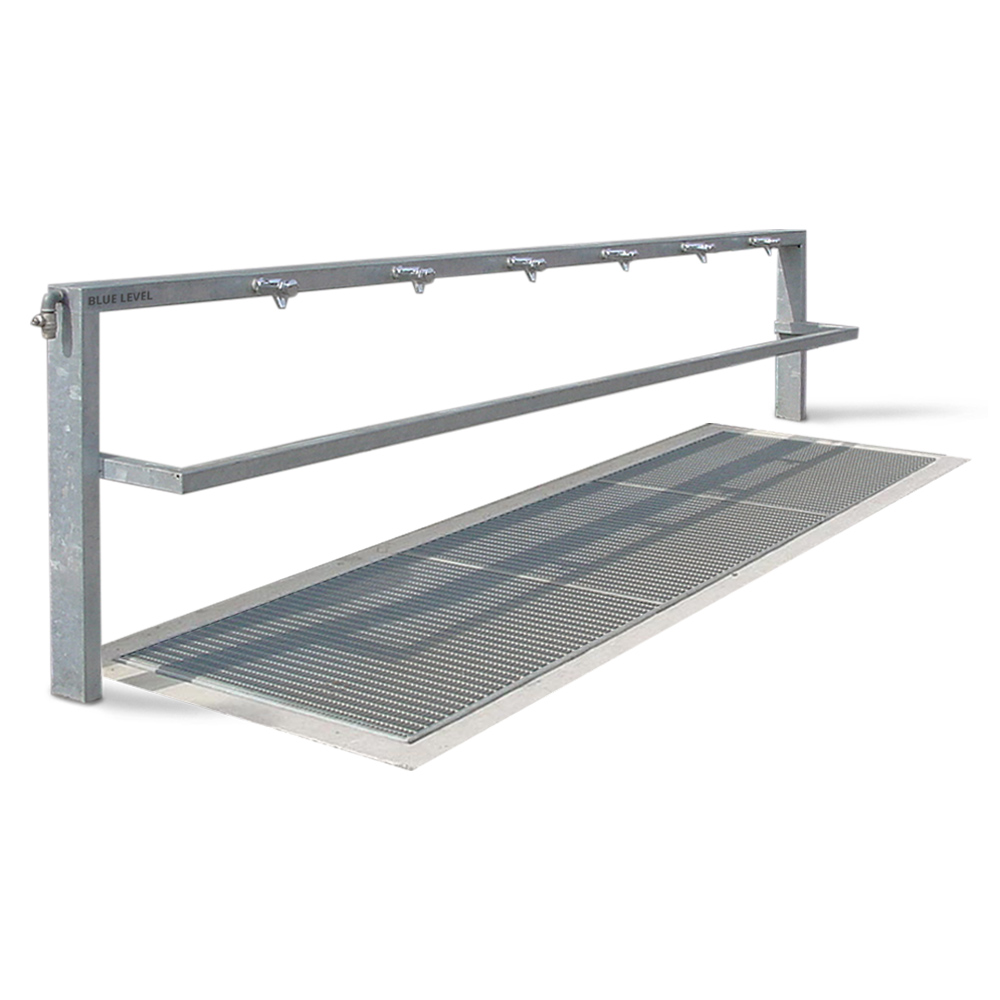

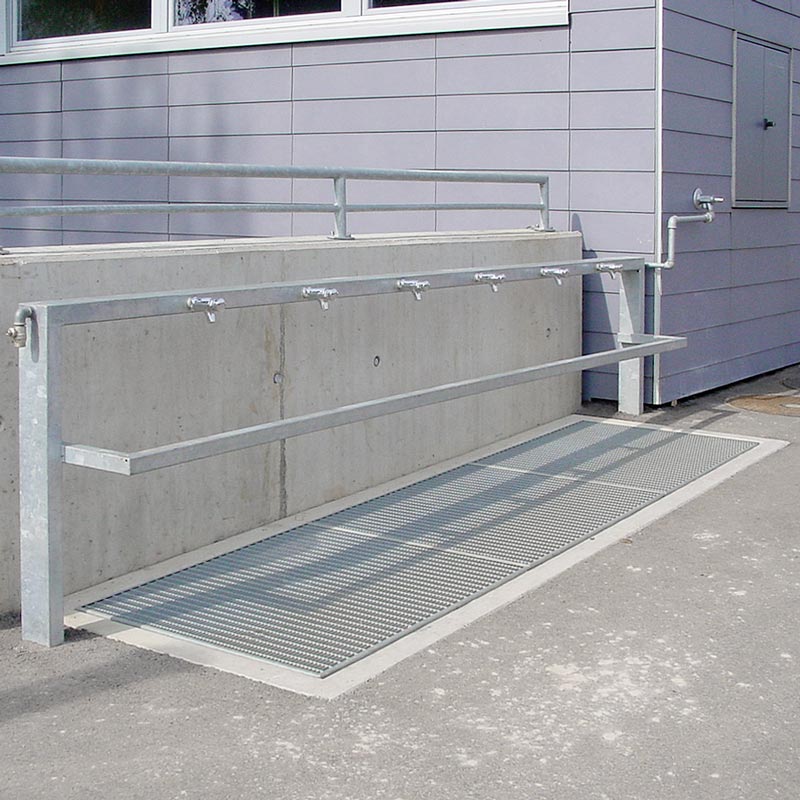

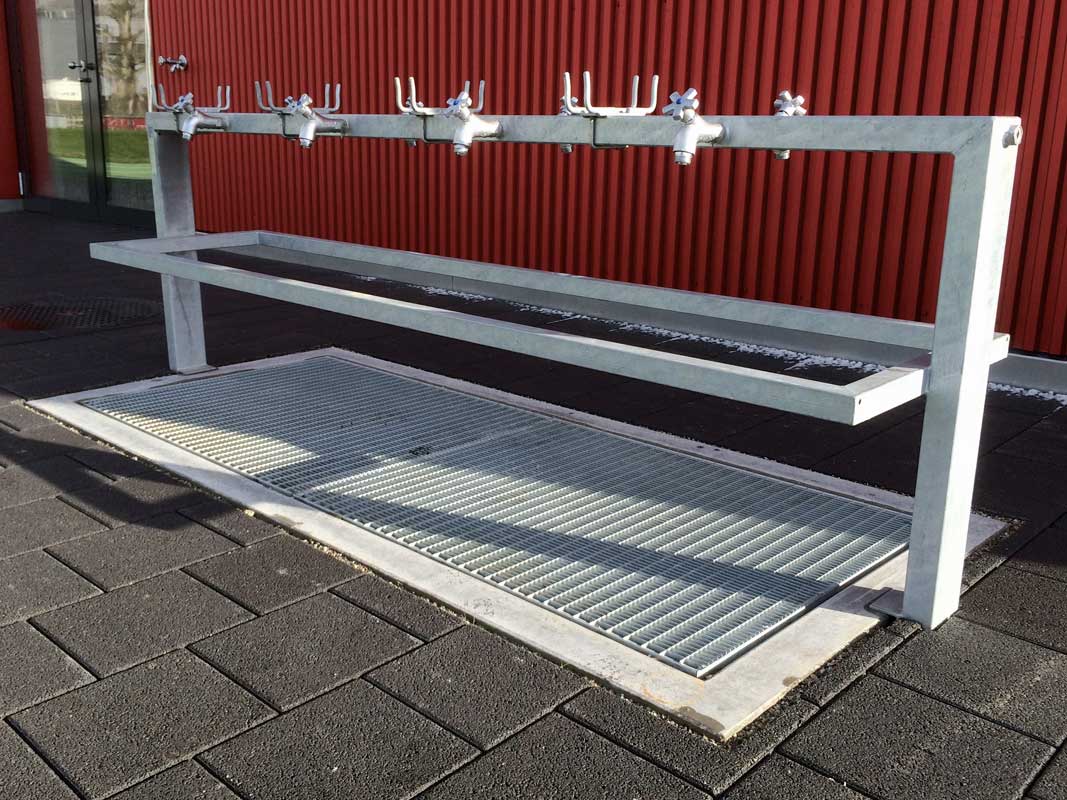

Detailed images of the Shoe and boot cleaner flush to the floor:
Description
Shoe and boot cleaner flush to the floor - the recessed solution for shoe and equipment cleaning for outdoor installations
This shoe and boot washer is an optimal solution for the quick and comfortable cleaning of dirty football shoes, work shoes, hiking shoes, combat boots or sports shoes. This robust concrete shoe
washing machine is an ideal solution for highly frequented outdoor facilities. Thanks to its modular design, it can be easily adapted to the specific needs of every conceivable area of
application. Whether at military bases, sports fields, police schools, schools or farms: This shoe cleaner ensures perfectly clean shoes without spilling dirt into changing rooms and other
interior areas.
We offer the Shoe and boot cleaner flush to the floor with 4, 8, 12, 16 and 24 washing places (see options below). Depending on the model selected, these are mounted on one or both sides. The
standardised tap connections on the wash handle allow a free choice of taps and hand wash brushes (see accessories). In addition, a support bracket mounted on the handle ensures a comfortable and
secure footing when cleaning shoes.
Depending on the model, the built-in shoe washing system consists of 1-4 washing basins made of formwork-smooth, reinforced concrete, which are embedded into the floor at ground level. Shaft
linings for PVC pipes (NW 100) are supplied for water drainage, which can be positioned either left or right. The individual tubs are provided with 2-3 galvanized steel gratings. These can be
easily removed for easy cleaning of the boot washer.
Water is supplied via a wash handle made of hot-dip galvanised steel profiles (100 x 50 mm). Depending on the selected version, it is equipped with 4-24 tap connections (1/2"). In addition, the
shoe cleaner has a hose connection (3/4"/ LW 16). The fresh water is fed into the washing system via a welded, hot-dip galvanized connection sleeve (1"). As with the water drain, a left or
right-hand installation can also be selected for the connection.
Technical specifications
Case: Concrete washing trough
Grate: hot-dipped grates
Dimensions: version 4 cleaning stations, single-sided
Dimensions: 235 cm x 100 cm x 120 cm (width x depth x height
Dimensions concrete element, 2 grids: 221 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 4 pieces one-sided: 234 cm x 120 cm (width x height)
Weight: 990 kg
Weight of concrete element: 953 kg
Weight of the washing hanger: 37 kg
Item number: STW-00451
Dimensions: version 6 cleaning stations, single-sided
Dimensions: 334 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 3 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 6 pieces double-sided: 334 cm x 120 cm (width x height)
Weight: 1485 kg
Weight of concrete element: 1430 kg
Weight of the washing hanger: 55 kg
Item number: STW-00452
Dimensions: version 8 cleaning stations, double-sided
Dimensions: 235 cm x 100 cm x 120 cm (width x depth x height)
Dimensions concrete element, 2 grids: 320 cm x 100 cm x 25 cm (width x depth x height)
Dimensions washing hanger, 8 pieces double-sided: 234 cm x 120 cm (width x height)
Weight: 998 kg
Weight of concrete element: 953 kg
Weight of the washing hanger: 45 kg
Item number: STW-00453
Water inflow: Water connection sleeve 1", optionally right or left mounted
Water outflow: PVC socket NW 100, optionally mounted on right or left side
Max. Pipe pressure: 5 bar
Max. Operating pressure: 6 bar
Electrical supply: no electrical supply necessary
Warranty: 2 years
